Mobile Se Set Top Box Me Software Kaise Kare? RMS-G FlashTool Pro (CH341A OTG Guide)
Kya aapka Set Top Box (DTH Receiver) dead ho gaya hai, red light issue de raha hai ya boot logo par freeze ho chuka hai? Aur aapke paas software flash karne ke liye koi PC ya Laptop nahi hai?
Don't worry guys! Ab aap bina kisi computer ke, bas apne Android Smartphone, CH341A Programmer aur ek OTG Cable ki help se kisi bhi EEPROM ya BIOS chip ko directly Read, Write aur Erase kar sakte hain. Is kaam ko super easy banane ke liye aa gaya hai RMS-G FlashTool Pro app!
Is post me hum details me baat karenge ki RMS-G FlashTool Pro kya hai, iske powerful features konse hain, aur mobile se software flash karne ka step-by-step process kya hai.
RMS-G FlashTool Pro Kya Hai? (What is RMS-G FlashTool Pro?)
RMS-G FlashTool Pro android users ke liye ek highly advanced CH341A USB Programmer App hai. Is app ko khas karke electronics technicians, DTH repairers aur satellite receiver software modification karne walon ke liye design kiya gaya hai.
Is app ki madad se aap apne mobile se directly 24-Series (I2C) aur 25-Series (SPI Flash) chips ko complete control aur flash kar sakte hain.
RMS-G FlashTool Pro Ke Key Features
No PC Needed (Direct Mobile Connection) Ab flashing ya dump backup lene ke liye mehangi PC setup ki koi zaroorat nahi hai. Simply apne phone me OTG connect karo, CH341A programmer lagao aur kaam start karo.
Dual Mode Support (24 & 25 Series) Yeh app CH341A programmer ke dono major modes ko fully support karta hai:
SPI Mode: 25-Series Flash ICs ke liye.
I2C Mode: 24-Series EEPROM ICs ke liye. Aap app ke andar se single tap me mode switch kar sakte hain.

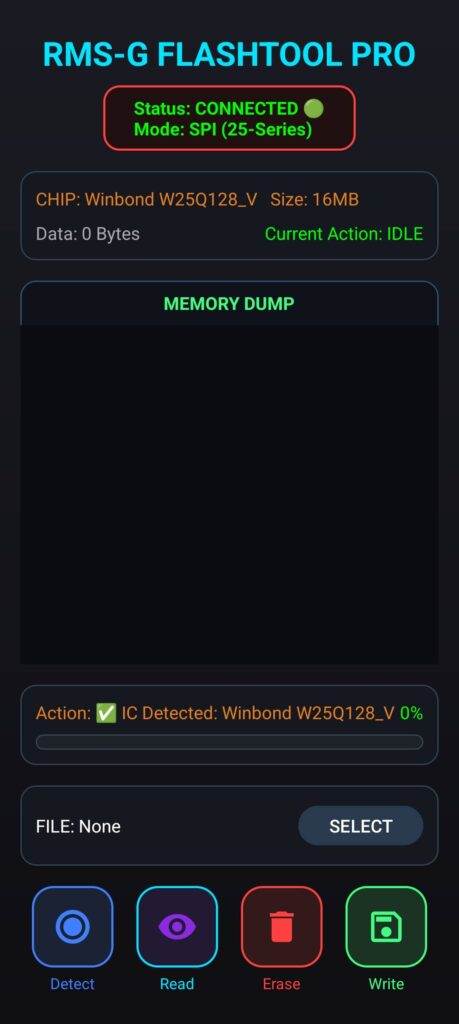

Smart IC Auto-Detect & Online Database Jaise hi aap programmer me chip lagayenge, app automatically IC ka name aur size (MB/KB) detect kar leta hai. Agar koi unknown IC hai, toh iska Online Database internet se connect hokar exact IC model search kar leta hai.

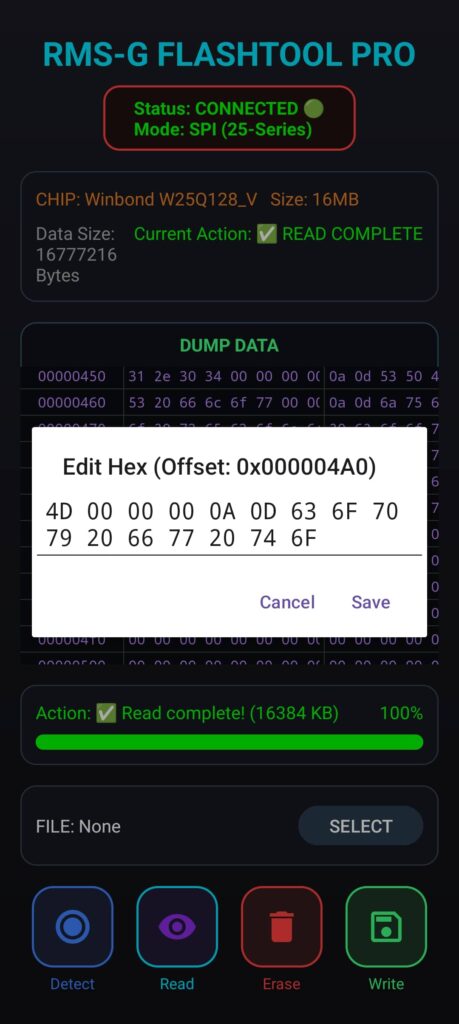

Advanced Dual-Scroll Hex Editor Binary code edit karne ke liye kisi separate software ki zaroorat nahi hai. App me in-built powerful Hex Viewer/Editor diya gaya hai jo vertical aur horizontal scrolling support karta. Aap Hex/ASCII code ko bina text cut huye live edit aur save kar sakte hain.

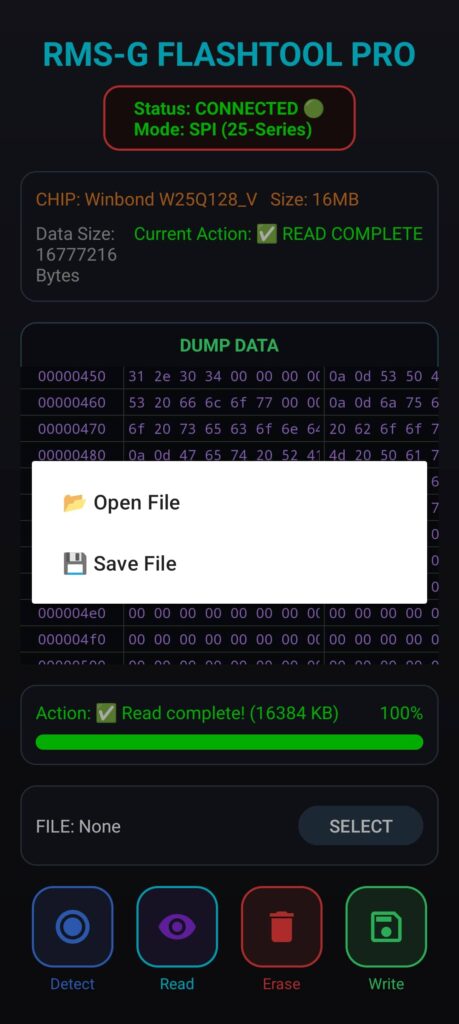

Smart File Management (1-Click Flash & Backup)
Software Data (.bin Load): Mobile storage se koi bhi .bin software file select karke IC me 1-click me flash karein.

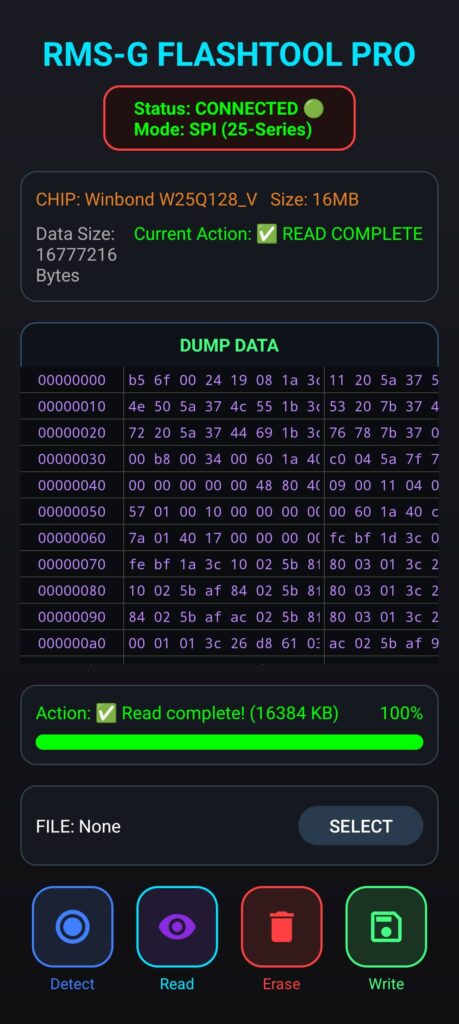

Dump Data (Backup): Working IC ka original dump backup single click me apne phone me safe save karein.
Auto Protection Unlock (1-Click) Agar koi IC "Write-Protected" ya locked hai, toh app use pehchan leti hai aur aapko 1-Click Unlock & Erase ka Option deti hai, jisse locked IC easily flash ho jati hai.
Background Safe Processing & Live Notification % Heavy flashing process ke dauran screen off hone par bhi app ka kaam nahi rukta kyunki yeh Background Service & WakeLock use karta hai. Aapko phone ke Notification Bar me Live Progress % dikhta rehta hai, chahe aap app ko minimize hi kyon na kar dein.
Required Hardware (Zaroori Saman)
Mobile se flashing karne ke liye aapko in hardwares ki zaroorat padegi:
Android Smartphone (OTG Support ke sath)
CH341A USB Programmer (SOP8 Clip ke sath)
OTG Cable / Adapter (Type-C ya Micro-USB)
Target IC (24-Series ya 25-Series Flash IC)
Mobile Se Set Top Box Flash Kaise Kare? (Step-by-Step Guide)
Step 1: Apne Android phone ki Settings me jakar OTG Option ON karein.
Step 2: OTG Cable ki madad se CH341A Programmer ko mobile se connect karein.
Step 3: Set Top Box ki IC par SOP8 clip lagayein ya IC ko nikalkar CH341A base par Pin 1 ke hisab se set karein.

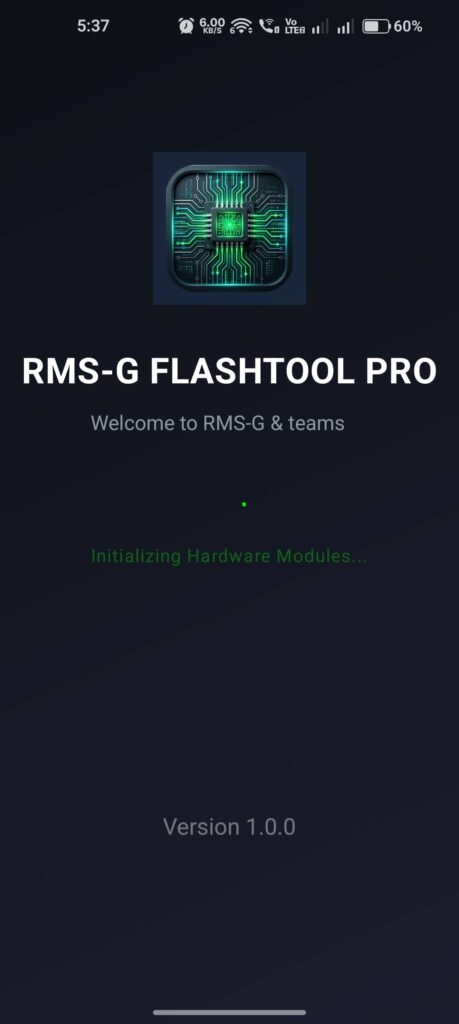

Step 4: RMS-G FlashTool Pro app open karein aur Detect IC button par click karein.
Step 5: Agar IC write-protected dikhaye toh pehle Unlock button dabayein.

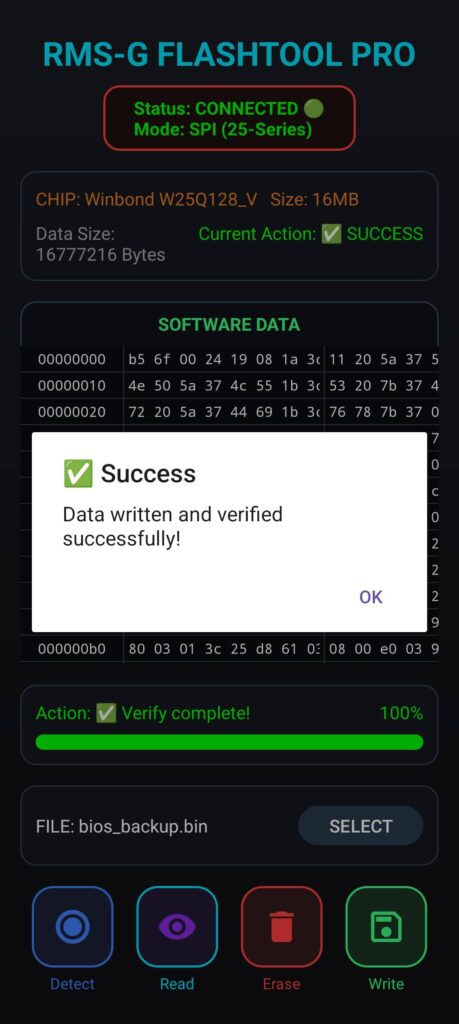

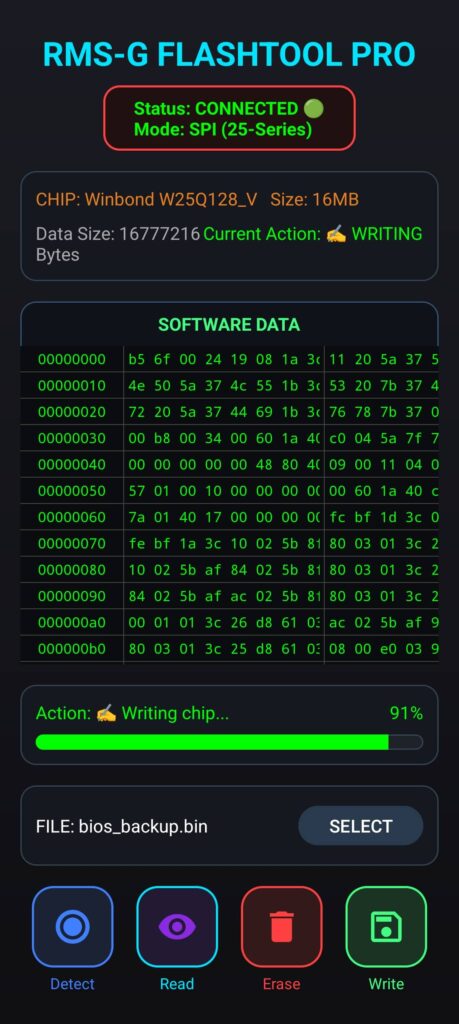

Step 6: Original software save karne ke liye Read/Backup par click karein, ya new software dalne ke liye .bin file choose karke Write par click karein.

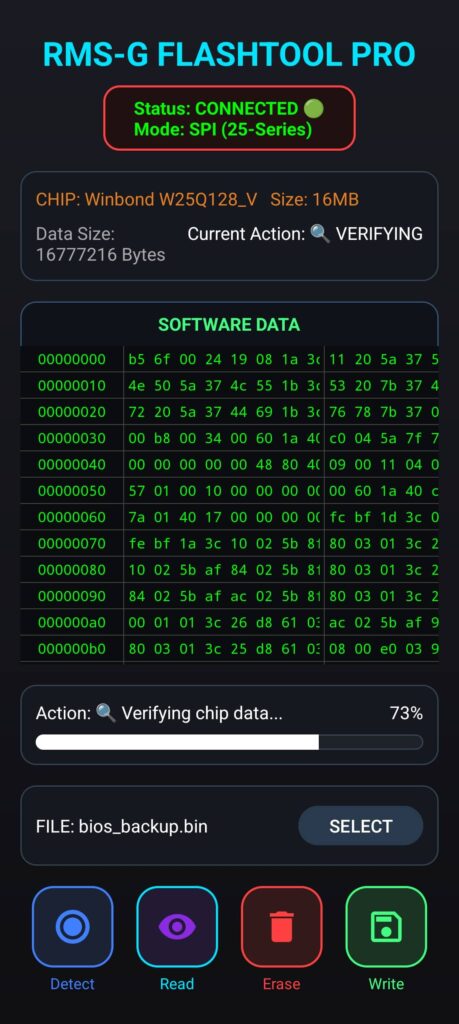

Step 7: Process 100% hone tak wait karein (Aap progress Notification Bar me bhi check kar sakte hain).
Final Words (Conclusion)
Agar aap Satellite Set Top Box software modification, DTH repair ya computer BIOS programming ka kaam karte hain, toh RMS-G FlashTool Pro aapke daily work ko super fast aur efficient bana dega. Without PC anywhere-anytime mobile se flashing karna ab bilkul easy hai.
Agar aapko yeh article helpful laga ho toh ise apne technician friends aur WhatsApp groups me share zaroor karein!
|=|Files Contain
| File | Action |
|---|---|
| RMS-G_Flashtool_Pro_2.0.apk | Download |
